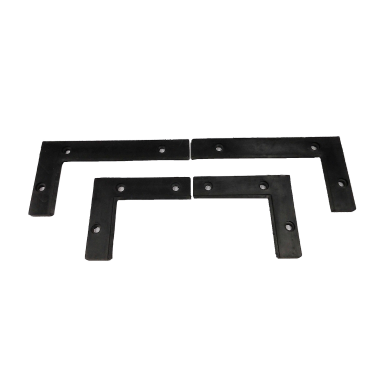

Product Definition and Uses

Mold machine way wipers are a key consumable designed specifically for protecting the slide rails of industrial equipment. They are primarily used in CNC metal cutting equipment, lathes, machining centers, and various other industrial machines. Their core function is to effectively scrape away metal filings, dust, and oil films from the slide rail surface during equipment operation, preventing contaminants from entering the slide rail's moving area and thus preventing scratches, abnormal wear, and decreased precision.

With properly selected and installed die scraper blades, the slide rails can be kept clean for extended periods without interrupting equipment operation, making them an important protective component for ensuring the precision and lifespan of machine tools.

In what situations is it appropriate to use a mold machine way wiper?

In practical machine tool and industrial equipment applications, mold machine way wipers are particularly suitable for the following scenarios:

1. Guide rails are exposed to iron filings, dust, or cutting oil for extended periods.

2. Equipment requires high positioning and repeatability accuracy.

3. Guide rail surfaces are easily scratched or worn by foreign objects.

4. There is a desire to reduce the frequency of manual cleaning and maintenance time.

5. Equipment needs to operate continuously for extended periods.

Compared to dust covers or protective caps alone, mold machine way wipers can remove contaminants instantly during guide rail movement, providing more direct and effective protection.

Structural and Material Design Specifications

The mold machine way wiper can be customized according to the type of equipment slide rail and the operating environment. Its main structure and materials are as follows:

1. Way Wiper Body Material:

1-1. Oil-resistant rubber (NBR): General purpose, suitable for most machine tool environments.

1-2. Fluororubber (e.g., VITON): Suitable for aerospace, chemical resistance, or special working conditions.

2. Structural Design (Optional):

2-1. Internal iron-clad structure (improves rigidity and fit)

2-2. Externally bonded stainless steel sheet (strengthens fixation and durability)

3. Design Features:

3-1. Can perfectly fit according to customer drawings or actual slide rail dimensions.

3-2. Rubber hardness can be specified to balance scraping force and wear life.

3-3. Suitable for long-term reciprocating motion.

Main advantages of mold machine way wipers

Effectively removes iron filings, dust, and oil film, protecting the slide rail surface.

Custom sizes are available to fit the slide rail perfectly.

Rubber material and hardness can be specified upon request.

Excellent wear resistance, oil resistance, and iron filings resistance.

Good cost-performance ratio for certain order quantities.

Customized design and selection support

Mold machine way wipers can be fully selected and customized according to customer equipment conditions, including:

1. Slide rail type and installation dimensions

2. Way wiper shape, thickness, and scraping angle

3. Rubber material (NBR/VITON, etc.) and hardness

4. Whether iron or stainless steel reinforcement is required

5. Operating environment (oil content, iron filings content, chemical properties)

During the design phase, scraping effect, wear life, and slide rail protection balance will be evaluated simultaneously to ensure long-term stable operation.

Application Scope

Common applications of mold machine wipers include:

1. Traditional machine tools

2. CNC lathes

3. Machining centers (MC)

4. Various linear guideways and industrial equipment

Proper configuration of mold machine wipers can effectively reduce the risk of guideway contamination, maintain equipment accuracy, and extend overall service life.

FAQ｜Common Questions about Mold Machine Wipers

Q1: What is the main function of a mold machine wiper?

A: The main function of a mold machine wiper is to scrape away metal filings, dust, and oil film during slide rail movement, preventing contaminants from entering the slide rail and causing wear and reduced precision.

Q2: Must mold machine wipers be customized?

A: Customization is generally recommended. Because slide rail sizes and types differ, customized wipers ensure a good fit and effective scraping.

Q3: How to choose between NBR and VITON materials?

A: NBR is generally suitable for machine tool environments; for special applications requiring chemical resistance, high temperature resistance, or aerospace applications, VITON is recommended.

Q4: Will mold machine wipers scratch the slide rails?

A: With the correct material and hardness selection, mold machine wipers can effectively clean the slide rails without causing scratches.

Q5: How often should mold machine wipers be replaced?

A: The replacement cycle depends on the amount of metal filings, operating frequency, and material selection. They should usually be replaced before wear affects the scraping effect.
