What is a Roll-up Cover?

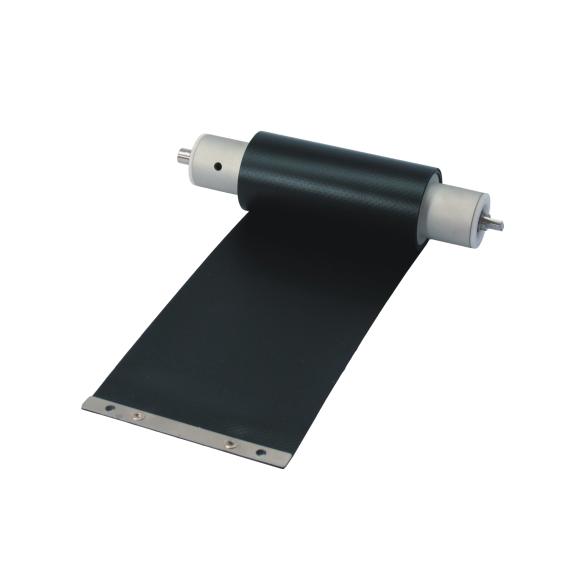

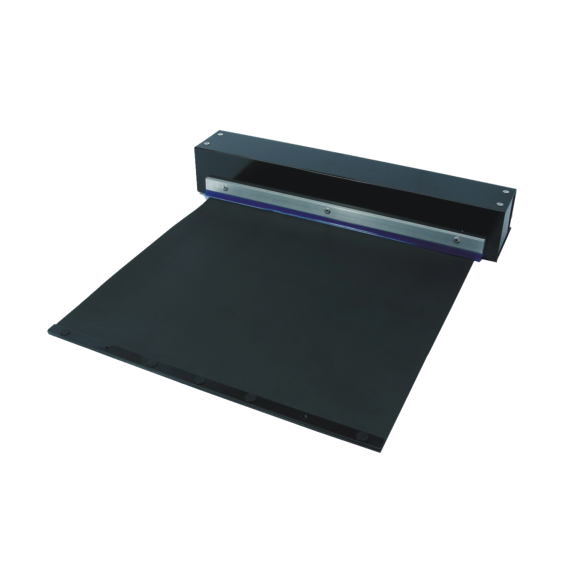

A Roll-up Cover is a space-saving protective solution featuring an automatic rewinding drum. It is engineered for equipment with long linear strokes and limited installation space. By synchronizing with machine movement, it provides a dynamic barrier against metal shavings, coolants, and dust. These covers are ideal for CNC machines, large lathes, and automated production lines where high-speed travel and a compact footprint are required.

Engineering Focus: Performance & Customization

High-Speed Synchronization: Capable of handling rapid traverses up to 1 m/s. The low-inertia drum design ensures immediate response during high-acceleration cycles.(Also can be design 2m/s travel speed)

Extended Life Cycle (Optional): For high-frequency applications, we offer a Specialized Spring Design capable of exceeding 250,000 cycles, ensuring long-term tension stability and reduced maintenance.

Versatile Curtain Materials: * Stainless Steel / Steel Sheets: Best for hot chip loads and high-impact protection.

Aluminum Alloy: Optimized for lightweight and high-speed motion.

Reinforced Fabrics: 100% oil-proof and dust-proof for cleanroom or liquid-heavy environments.

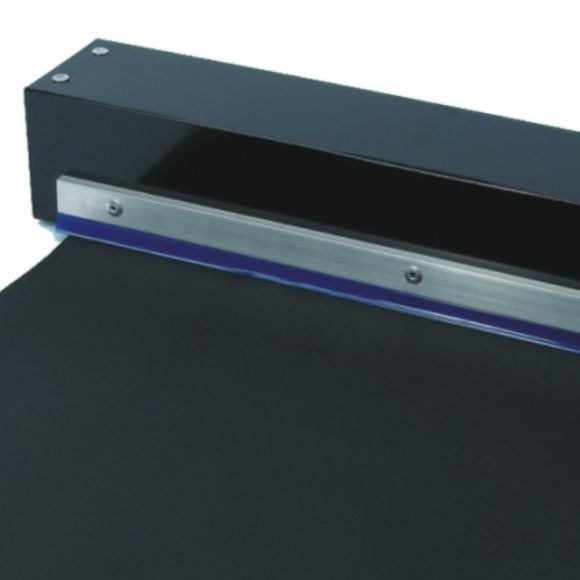

Durable Housing: Available in sheet metal or stainless steel to protect the internal rewinding mechanism from harsh external contaminants.

Optimize Your Space with Reliable Protection

Integrating a roll-up cover requires precise balance between tension and speed. Our semi-automated system allows us to provide technical proposals and pricing within 24-48 hours.

Discuss Your Dynamic Limits: Need a custom rewinding speed or a specific box dimension? Our engineers specialize in reviewing design constraints to provide a zero-interference fit.

Rapid Response Cycle: We prioritize your project health. Whether it's a new design or a machine retrofit, we deliver the data you need to stay on schedule.

FAQ｜Common Issues Regarding Roll-Up Cover

Q: Is the 250,000-cycle life standard?

A: This high-endurance rating is available as an Optional Specialized Spring Design, specifically for equipment with high operating frequencies. Please specify your frequency requirements during inquiry.

Q: Can roll-up covers handle high-temperature chips?

A: Yes. By choosing our stainless steel or aluminum slat curtains, the system can effectively deflect hot metal shavings and sparks.

Q: What is the maximum speed supported?

A: Our standard designs support up to 1-2 m/s, depending on the curtain material and total travel length.

⚡ For a Rapid Quote (Response within 24-48 hours):

To receive a precise technical proposal and quote in the first reply, please provide these 7 Key Parameters:

1. Housing Dimensions:Box Width (W):

2. Total Protective Stroke (L): (Maximum extension)

3. Curtain Material: (e.g., Stainless Steel, Aluminum, or Oil-proof Fabric).

4. Motion Dynamics: Max Speed (m/min):

5. Operating Frequency: (Do you require the 250,000-cycle Special Spring?)

6. Installation Orientation:(Horizontal, Vertical, or Cross-mount).

7. Technical Support Needs:Do you require a 3D CAD Model (STEP) for space verification?
