Round rubber bellow
- What is a Round Rubber Bellows?
- A Round Rubber Bellows is a precision-molded protective component engineered for axial motion systems. It provides a flexible, hermetic seal for ball screws, hydraulic cylinders, and pneumatic rods, preventing the ingress of oil, water, dust, and abrasive particles.
- Commonly utilized in CNC machining, EDM fluid control, and automated transmission systems, these bellows are essential for maintaining motion accuracy and extending the operational lifespan of high-value mechanical components.
- Engineering Excellence: Performance & Stability
- Industrial-Grade Resilience: Manufactured from high-tensile rubber compounds that comply with EU RoHS. Resistant to oils, common industrial chemicals, and environmental aging.
- Axial Motion Optimization: Designed for high-frequency reciprocating motion. Optional pressure-equalizing air holes are available to ensure structural stability and prevent bulging during rapid stroke cycles.

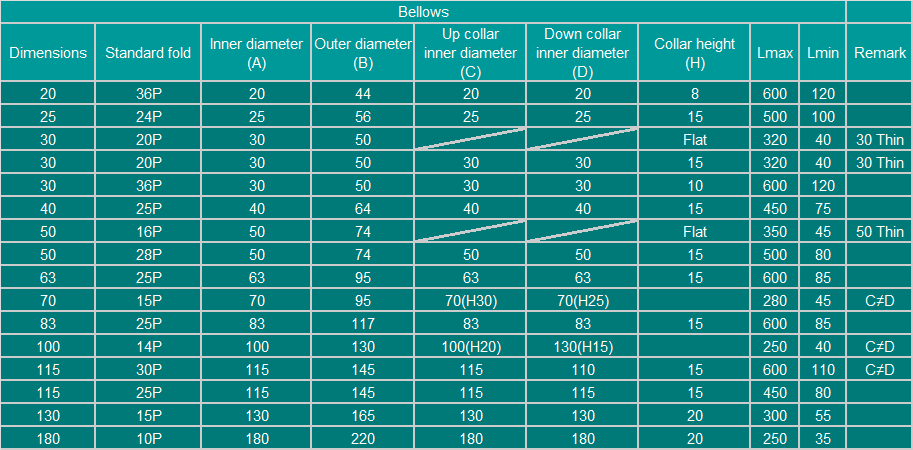

- Standardized Fast-Selection: We provide a comprehensive Standard Size Chart for common inner/outer diameters and flange configurations, enabling rapid delivery for urgent maintenance needs.
- High-Stroke Compatibility: Capable of full-stroke coverage for ultra-long screws, with internal branch supports available to maintain shape integrity over extended travel.
- Accelerate Your Project with Precise Protection
- We specialize in helping engineers navigate design constraints, from tight installation envelopes to extreme environmental conditions. Our semi-automated system ensures you receive technical quotes and CAD data without unnecessary delays.
- Rapid Technical Feedback: Whether you require a standard part or a fully customized bellows, our team provides preliminary pricing and data within 24-48 hours.
- Design Constraint Review: Dealing with limited compressed space or high-speed cycles? Our engineers will review your parameters to ensure the most reliable fit.
- Streamlined Procurement: From single-unit prototypes to bulk production, we prioritize clear communication and fast lead times.
- FAQ｜Common Issues with Round Rubber Bellows
- Q: Can these bellows be used for EDM fluid level control?
- A: Yes. Our rubber compounds are compatible with EDM dielectric fluids, ensuring reliable sealing and level management.
- Q: Are standard sizes available for immediate shipment?
- A: We maintain a range of standard specifications for inner/outer diameters. Please provide your requirements for a quick stock check.
- Q: Why are internal supports or air holes sometimes required?
- A: For long-stroke or high-speed applications, these features prevent vacuum buildup or mechanical sagging, ensuring the bellows move synchronously with the equipment.
- ⚡ For a Rapid Quote (Response within 24-48 hours):
- To receive a precise technical proposal and quote in the first reply, please include these 5 Key Parameters:
- 1. Dimensions:
- Inner Diameter (ID): (To clear the shaft/screw)
- Outer Diameter (OD): (Max available space)
- 2. Stroke Details:
- Maximum Extension (Lmax)
- Minimum Compression (Lmin)
- Mounting Method:(e.g., Clamp-on at both ends, or Flange mounting).
- 3. Operating Environment:
- (e.g., Oil exposure, EDM fluid, Outdoor/UV, or High temperature).
- 4. Technical Support Needs:
- Do you require a 3D CAD Model (STEP) or a RoHS Certification?
