Cable drag chains

Enclosed metal carriers(SUS430)

Recommended metal drag chain: Stainless steel metal drag chain for 5-axis machining centers and CNC machine tools
In modern high-precision machining and the operation of five-axis multi-axis machine tools, the multi-axis linkage displacement of the machine tool brings extremely high-frequency torsion and tension to the internal power cables, signal lines, and air pipes. "Square sliding cable protectors" (also known as square floating cable protectors or stainless steel cable protection conduits) are top-of-the-line cable protection systems specifically designed for high-end machine tools. They not only provide perfect dynamic protection but are also key components for maintaining the high-quality, streamlined appearance of the equipment.
We have 36 years of experience in the research and development and manufacturing of industrial drive and machine tool protection systems. Our square sliding cable protectors combine high-quality 430 stainless steel with high-performance engineering plastics (304 stainless steel is now an option), paired with gravity-cast aluminum alloy flanges. They possess excellent corrosion resistance and fully enclosed, quiet operation, and have long provided the most aesthetically pleasing and safe cable management solutions to major high-end machine tool manufacturers both domestically and internationally.
What are the challenges of cable handling in multi-axis machining on high-end machines? How can metal drag chain solve these problems?
When operating in a five-axis metal cutting machining center or a high-dynamic CNC machine tool, exposed cables often face the following critical threats:
Long-term high-pressure splashing of cutting fluid (risk of cable degradation and rust): High-speed cutting generates large amounts of corrosive water-based or oil-based cutting fluid. If the protective tubing is of poor quality, it is highly susceptible to rust or premature embrittlement of internal wires, leading to leakage, short circuits, and machine shutdown.
Direct impact damage from high-temperature heavy cutting chips: Sharp and hot iron or aluminum chips that directly hit the cable can instantly burn through or puncture the outer sheath.
Excessive noise from traditional cable carriers, affecting the factory environment: Traditional link-type cable carriers, during high-speed reciprocating movement, often generate loud, continuous noise due to link collisions and friction. Furthermore, their movement is not smooth, ruining the refined appearance expected of high-end equipment.
Our Solution
By adding a custom-designed square protective tube that combines a steel frame for protection with an aesthetically pleasing design, the above pain points can be perfectly resolved:
Stainless Steel Fully Enclosed Protective Wall (Steel Frame for Chip Protection and Corrosion Resistance): The outer shell is fully enclosed in high-grade stainless steel, forming a solid barrier that 100% blocks direct impact from high-temperature iron filings and long-term splashing of cutting fluid, ensuring no rust and providing the most comprehensive physical safety protection for internal cables.
Silent Operation and Extremely Smooth Movement: The internal high-performance engineering plastic guide mechanism eliminates the sound of violent metal impacts during operation. Its special overlapping and telescopic design allows the protective tube to move smoothly and quietly, perfectly matching the high-speed and stable requirements of a five-axis machining center.
The metal drag chain is made of carefully selected materials and has a finely crafted structure.
To maintain its durable aesthetics and robust protection under harsh conditions of coolant splashing and high dynamic tension, we implement the strictest control over materials and processes:
1. Tube Body: A golden combination of SUS430 stainless steel and engineering plastics
Outer Metal Armor: Constructed from high-quality 430 stainless steel (SUS430). It possesses excellent corrosion resistance, high-temperature resistance, and mechanical impact resistance. Its smooth, non-slag-adhesive surface maintains its shine and rust-free properties even under prolonged coolant splashing.
Inner Guide Structure: Composite high-strength engineering plastic significantly reduces the coefficient of friction during tube movement, achieving efficient vibration damping and ultimate quiet operation.
2. Mounting Brackets: Aluminum Alloy Gravity Die-Cast Flanges
The mounting flanges at both ends of the tube are made of high-strength aluminum alloy using gravity die casting.
With high structural precision, lightweight yet robust and resistant to heavy pressure, it can be firmly locked to the machine tool spindle or body, perfectly withstanding the combined torque brought by multi-axis motion, and preventing breakage or loosening.
Common Applications and Scenarios of Metal Drag Chain
Square-shaped travel guides are commonly used in:
Various CNC machine tools
5-axis CNC metal cutting machining centers
High-end automated equipment
Machinery with high requirements for appearance and reliability
Through appropriate square-shaped travel guide design, equipment safety, service life, and overall appearance quality can be improved simultaneously.
Why choose our custom metal drag chain? Three core advantages.
Balancing fully enclosed safety protection with superior equipment aesthetics: Breaking away from the cluttered appearance of traditional tank tracks, the square-shaped protective tube presents a sleek, minimalist silver design with a high-tech feel. Its smooth movement significantly enhances the overall product value and export appeal of the CNC 5-axis machine tool.
A superior, silent machining experience: The perfect fit between the internal engineering plastic and the outer stainless steel minimizes operating friction noise, making it ideal for modern automated smart factories and optical/semiconductor peripheral equipment where low noise and high cleanliness are paramount.
Customizable length for perfect structural fit: The total length of the protective tube can be completely customized to fit the actual installation dimensions and travel distance of your equipment, maximizing space utilization and ensuring optimal downstream travel radius.
5 Frequently Asked Questions about Metal Drag Chain Before Purchase (Q&A)
Q1: What are the biggest advantages of square sliding cable carriers compared to regular plastic enclosed cable chains?
A: The biggest differences lie in their "aesthetic appeal" and "extreme quietness." Regular enclosed cable chains are composed of individual links, which produce noticeable joint and link collision noises when bent. In contrast, square sliding cable carriers feature a smooth, integrated stainless steel design, exhibiting a perfect curved motion. Furthermore, due to the internal engineering plastic guide, operation is completely silent. Additionally, the stainless steel material is completely rust-free and does not accumulate dirt even under long-term exposure to cutting fluid, making it particularly suitable for high-end, exposed wiring areas such as in five-axis machining centers.
Q2: How many wires can a square sliding cable carrier hold? Is it necessary to reserve space like with regular cable chains?
A: Yes, it also requires reserved safety space. When selecting a model, please place all the wires and air hoses you plan to accommodate side-by-side and calculate their total outer diameter. We recommend that the total cross-sectional area of ​​the internal conduits should not exceed 65-70% of the internal volume of the square sliding cable carrier. This ensures that the internal wiring has sufficient dynamic margin during five-axis linkage and high-speed torsional motion, preventing damage from excessive compression and pulling of the wires.
Q3: For customized inquiries, what data needs to be measured and provided for the square conduit?
A: To help you with accurate structural design and a quick quote, please provide the following core parameters:
1. Internal cable space: The total number of cables expected to be installed and their maximum outer diameter (to help us recommend suitable inner diameter and height for the square conduit).
2. Stroke and length: The effective stroke length of the machine movement and the locking position of the fixed end.

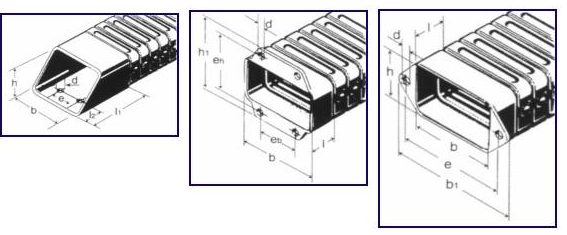

3. Aluminum alloy flange specifications: Whether a standard end face aluminum flange or special locking hole positions are required. Please provide photos of the equipment site, existing protective appearance, or CAD drawings. Our evaluation team will select the best specifications for you within 24 hours.
Q4: The square conduit is fully enclosed. Will it be difficult to pull out the internal wiring when maintenance or additions are needed?
A: Our square protective tubing has a very smooth internal design with minimal resistance. During initial installation or subsequent wiring additions, cables or air hoses can be easily threaded using traditional cable ties (pull wires). The aluminum alloy gravity die-cast flanges at both ends are also very easy to install and remove, effectively reducing the maintenance difficulty for subsequent wiring replacements at the factory.
Q5: Is there a minimum order quantity? Can a processing plant replace a single machine?
A: We fully accept customized production starting from a single piece (1 piece). Whether you are a high-end five-axis machine tool manufacturer (OEM) requiring a long-term, stable supply chain of protective accessories, or a processing plant needs to replace outdated protective tubing on a single CNC machine to improve factory aesthetics and safety, we provide one-on-one size confirmation and customized production scheduling services.


Enhance the quality and safety of your machine tools! Contact our square conduit experts now!

Don't let messy cables and rusty covers ruin the value of your expensive precision equipment. Whether you're a machine tool manufacturer (OEM) needing high-quality stainless steel square travel conduits, or your factory needs to upgrade or replace the wiring conduits on existing machines, we can provide you with the most professional specification selection and customized quotation services.

📞 Click here to contact our technical experts now 📧 Email inquiry: sales@megus1989.com (Feel free to attach specifications, sketches, or equipment photos)
💬 LINE online instant consultation: ID 23511763 We will reply within 24 hours with a dedicated person, providing you with the most accurate customized specification assessment and free quotation!
